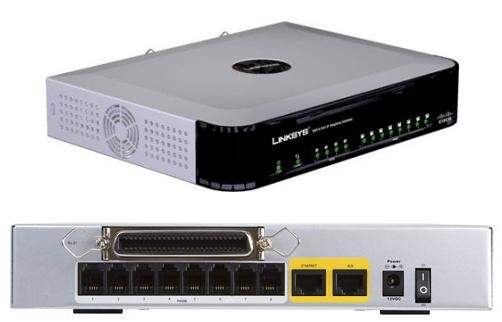

VoIP adapter Cisco SPA8000

1. Installing your adapter.
Connect your adapter's Ethernet port to the network by using Ethernet cable.

2. Launch a web browser on a computer that can reach the VoIP adapter on the network.

3. Direct the browser to the IP address of the VoIP adapter.

Note

To determine the IP address:

Connect an analog phone to L1 port of the VoIP adapter. Pick up the phone and press the star key four times (****). In the IVR menu enter 110# to hear the IP address.

Also you can get the IP address of the adapter by MAC-address from your router's ARP table. In any case you can request IP address to your system administrator.

4. Enter the IP address in your web browser address bar. Enter login and password (default is blank).

5. Click Admin Login, and advanced to pass to the advanced settings.

6. Click the Wan Setup tab in top menu and change your network and internet connection settings.

You can obtain your network settings from your system administrator. The configuration of internet connection you can obtain from your provider's support.

7. Click button Submit All Changes at the bottom to save your settings.

8. Enter provider's DNS addresses in fields Primary DNS and Secondary DNS.

9. Click button Submit All Changes at the bottom to save your settings.

10. Add information of your SIP accounts (please use tabs L1 - L8).

For example, to configure your SIP account click L1:

Select "yes" in field Line Enable.

    Note

    Select "yes" in field NAT keep alive enable if your VoIP adapter is "behind" the NAT.

Proxy: Enter SIP proxy domain address

Register: Yes

User ID: Enter your SIP ID

Use Auth ID: Yes

Auth ID: Enter your SIP ID

11. Audio Configuration

Set audio configuration parameters according to the screenshot below.

If you use extension numbers:

Select DTMF Tx Method to AVT to make possible DTMF signals transfer.

12. Do similarly settings in other tabs L2 - L8 for additional accounts.

13. Click button Submit All Changes at the bottom to save your settings.

Your VoIP adapter is ready to use!
